Compresores Pendulares
1 Etapa Horizontal
Características Técnicas
| Modelo | Cabezal | Potencia (HP) | Desplazamiento (lts/min) | Vel. de Rotación (RPM) | Volumen del Tanque (lts) |
|---|---|---|---|---|---|
| CPSP 302 | 80 | 2 | 220 | 700 | 100 |
| CPSP 303 | 80-80 | 3 | 320 | 700 | 190 |
| CPSP 304 | 110-110 | 4 | 720 | 580 | 220 |
| CPSP 305 | 130-130 | 5.5 | 880 | 580 | 220 |
| CPSP 307 | 130-130 | 7.5 | 1100 | 610 | 270 |

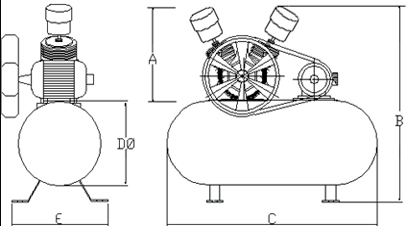

Cotas
| Cota | CPSP 302 | CPSP 303 | CPSP 304 | CPSP 305 | CPSP 307 |
|---|---|---|---|---|---|
| A (mm) | 450 | 550 | 550 | 620 | 620 |
| B (mm) | 1000 | 1100 | 1100 | 1200 | 1200 |
| C (mm) | 1270 | 1270 | 1470 | 1490 | 1490 |
| D (∅ mm) | 450 | 450 | 450 | 500 | 500 |
| E | 500 | 600 | 600 | 550 | 550 |
